2t Design Proposal

Views: 0     Author: Site Editor     Publish Time: 2018-10-18      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

1.Design Basis

This device design according to the relevant standards and norms of the People's Republic of China, and meet the requirements of buyer, specific design basis consists of the following specifications :



2.Construction Principle

Design principle: advanced production technique and equipments are adopted to lower down the energy consumption, pollution and investment, as following:


2.1 Adop mature technique and equipments to build up a domestic advanced plant both in production technique and environment protection.


2.2 Strictly comply with relevant requirements of “three wastages” treatment to minimize the pollution to the air. For those three wastages discharge or emission can not be avoid, process technique shall be taken to reduce pollution.


2.3 Make full use of H.T. and L.T. heat energy to produce 0.5MPa superheated steam. All steam is sent back to pressure style turbine to start up blower or extraction condensing turbine for power generation.


2.4 Build up firefighting, labor safety and industrial sanitation ideology, and strictly control environment pollution, and save energy.


2.5 Adopt advanced technology and limit the investment cost.


2.6 Follow the principle of plant layout integrative, light-duty building to match with the characteristics of sulfonation plant.



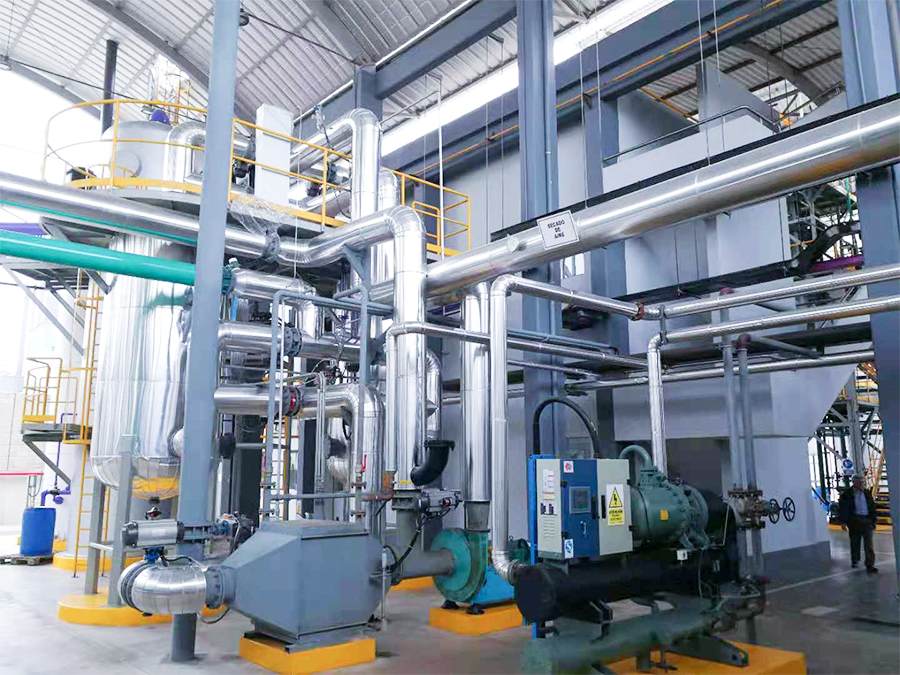

3. Battery limits Definition

Sulfonation Plant are all used steel frame workshop but have prevented from sunlight and rain conditions, power distribution room, control room, air compressor room and sulfur burning room need separate room.


The definition of the device region means 1 meter outside of the workshop, if using open layout, should be in the device covers an area of 1 meter outside the boundary calculation. All materials from supplier and buyer are interfaced in this 1 meter boundary area.


The power transfer interface is that buyer put the power cable into the line side of the main circuit breaker offered by supplier.



4. Scope of Work


4.1 The scope of supplier (Plants)

a. The capacity of Philippine projects: 2.0Mt/Hr LABSA, details see the equipment list of the contract

b. Proprietary technology, basic technology, and construction drawing design

c. Equipment and machines equipped with motor

d. Process piping and valves

e. The flow chart representation of the local installation of special cable meter, and accessories

f. Control panel

g. Electrical distribution plate

h. Electrical, instrumentation and installation accessories

i. Steel structure and piping bracket bearing

j. Thermal insulation materials and coatings


4.2 The scope of Buyer

No other specific facilities and equipment and unit area, are not belong to the scope of supplier, the specific items are as follows:

a. The supply of raw materials

b. Raw material and product storage, transportation, transport facilities

c. Outside cooling air, cooling water and pipeline of all surface, underground pipeline

d. Equipment, chemicals and special tool for laboratory use

e. The utility equipment, cooling water system, steam boiler and boiler feed water treatment plant

f. Civil work of power distribution station

g. Sewage treatment facilities

h. Follow civil engineering:

Workshop, storage shed, the lightning rod, the covering

Precast and installation of pipelines, steel structure etc.

Foundation anchor bolts

Heating system

Lighting

Grounding system

i. Pre commissioning, commissioning and operation of transport construct


5. Raw Material, Water, Electric Condition

Site Conditions:

Dry Bulb Design

<30℃

Relative Humidity

40% to 90 %

Temperature

-20℃-45℃

Wind Speed Design风速

35m/s



Geography Conditions:

Site Altitude above sea level

≤500m

Earthquake Resistant

7.5class




Raw material

Linear DDB

Molecular weight

235-255

Bromine number (Br g/100g)

≤0.005

Water content

≤0.01%

Iron content(as Fe)

≤1ppm

Chain length distribution

Less than C10

1% max

C10

10-20%

C10+C11

40-60%

C12

≥25%

C13

5-20%

More than C13

1-10%

2- phenil isomers

15-30%

Paraffins

0.2 WT %

Alkyltetralins

0.2 WT %

Normal alkylbenzene

≥99 %

Specific gravity (at 15°C)

0.856-0.865

Sulfur

Purity

99.7% min

Ashes

0.05% max

Water content

0.01% max

Bitumen content

0.02% max

Acidity (as H2SO4)

0.01% max

Arsenic content

0.25 ppm max

Selenium content

2 ppm max

Tellurium content

2 ppm max

Physical state

Solid

Caustic soda solution

Content (as NaOH)

30% max

Content (as NaCl)

0.01% max

Content (as Fe2O3)

0.01% max

The process water

Temperature

20~30℃

Hardness

50mg/L

Chlorine

12.6mg/l

Salt (sulfate)

13.8mg/l

PH

7.2

Pressure

>0.25Mpa

consumption

450kg/h

Cooling water

Pressure

≥0.3MPa

Temperature

≤32 ℃

Hardness

100mg/l

PH

7.2

Circulation

350 m3/h


Steam

Pressure

0.4Mpa-0.6Mpa

Consumption

200kg/h


Power supply

Total power in battery limit

500KW

Motor

AC 380V 50Hz

Lighting

AC 380V 50Hz

Meter

AC 220V 50Hz

Voltage fluctuation

≤5%

Frequency fluctuation

±1Hz


Instrument air

Pressure

0.7Mpa(1Mpa=10.2 Kg/cm2(a))

Consumption

3m3/min

Dew point

-20℃



6. Consumption of LABSA

Calculate as 1000kg LABSA which active matter is 96.5%, the consumption as follow:

LAB(molecular weight 235-255)

740kg

Sulfur(99.7%)

102kg

NaOH(32%NaOH)

7.5kg

Stream

100kg/h

Electric

80-100kw/h

7. LABSA Specification LABSA

Bromine number(Br g/100g)≤0.01,Sulfonation Rate ≥99.0%

Active Matter Concentration

≥97%

Free oil

≤1.15 wt%

Free acid

≤1.15 wt%

Sulforic acid

≤1.15 wt%

Color, Klett(5%solution,40mm path, N42)

≤15


Bromine number(Br g/100g)≤0.02,Sulfonation Rate ≥98.5%

Active Matter Concentration

≥96.5%

Free oil

≤1.5 wt%

Free acid

≤1.3 wt%

Sulforic acid

≤1.15 wt%

Color, Klett(5%solution,40mm path, N42)

≤20
